Circular Rod Cutting And Rounding Machine

Circular Rod Cutting And Rounding Machine

MOQ:1
Brand:GELGOOG MACHINERY
Certification: CE
Supply Ability: 100
PAY METHOD: WEST UNION L/C T/T CASH
Warranty Time: 12 Months
LOADING PORT: Qingdao port
Country Of Origin: China

Live Chat

Send Email

Application

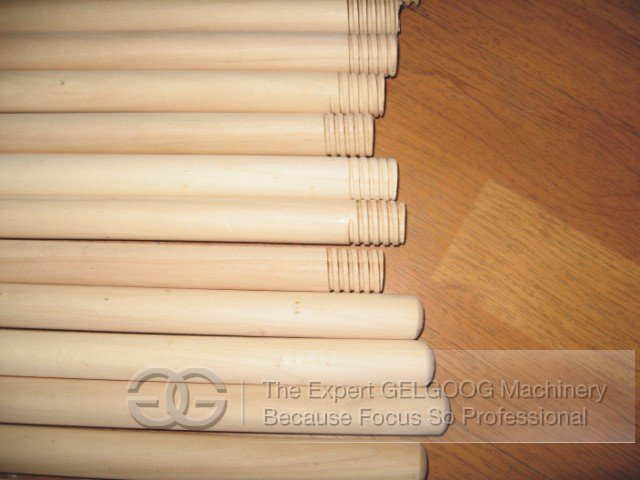

This machine mainly used for processing the wood broom mop,circular rod tooth-discharging and cutting and rounding.

Main Feature

We can customize the machine according to the requirements of customers.

Site Operation Simulation Shows

To have a further understanding,the company business staff will take you to visit our factory to make on-site operation.You can operate and experience our excellent mechanical processing equipment personally.The factorys technical person will answer your questions with the patience.

Analysis of Customers Requirements

Interacting with customers,analysis of needs for some clients,we are actively interacting with customer as well as stepping into the processing plant,helping customers analyze the processing of raw materials,offering free samples and analysis report,processing feasibility study combined with the factory and regional environment.

Features

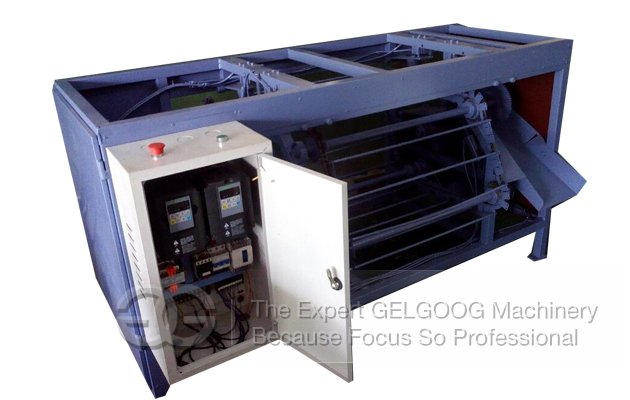

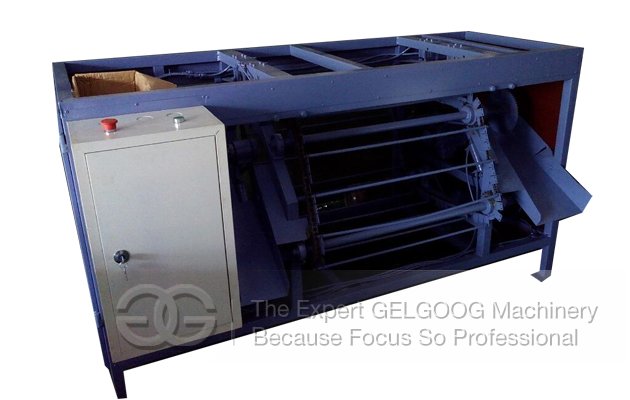

This machine mainly used for processing the wood broom mop,circular rod tooth-discharging and cutting and rounding.Circular Rod cutting and rounding machine,can solve the problem of making wood broom mop by manual,it can work automatically,save the labor force very well.The thread pitch diameter max can be 28mm,min can be 20mm,processing length max can be 1150-1300mm.This machine has three functions,Mop Threading,Head Rounding and uniform head.

Customer also can come to our factory to test the machine,we can give clients a training so that they can operate the machine very well.We can also offer the engineer go to abroad to install the machine.

Technical Data

Model	GGMP-1
Max Diameter of Thread Pitch	28mm
Min Diameter Of Thread Pitch	20mm
Processing Length	1150-1300mm
Max Thread Pitch	6mm
Min Screw Pitch	3mm
Feeding Motor Power	0.37kw
Tooth-Discharging Motor Power	0.75kw
Rounding And Sharping Motor Power	0.55kw*2
Working Speed	30 Pieces/Minute
Dimension	220012001100mm
Weight	1000kg

FAQ

1.Q:Have you exported to our country?

A:We have wide market all around the world,such as Africa,America,and Asia.All the reputation depends on the quality!Give us a chance ,we can feed back a satisfaction!

2.Q: We are not in China,how can you ship machines to us?

A: Do not worry about Shippment.We can help you to arrange shippment for you by Sea, by Air and by Express.If you have agent in China, welcome to your agent to come to us to pick up cargo if you like.

3.Q:Do you have CE Certification?

A:Yes,all our machine have the CE,BV,SGS,CCC,ISO9000.

4.Q:Is it easy to operate?can you give some instruction?

A:The machine is not difficult to be operated,also we have the video to show you how to operate.

5. Q:How long is the warranty?

A:Six months warranty and 24 hours online service.
