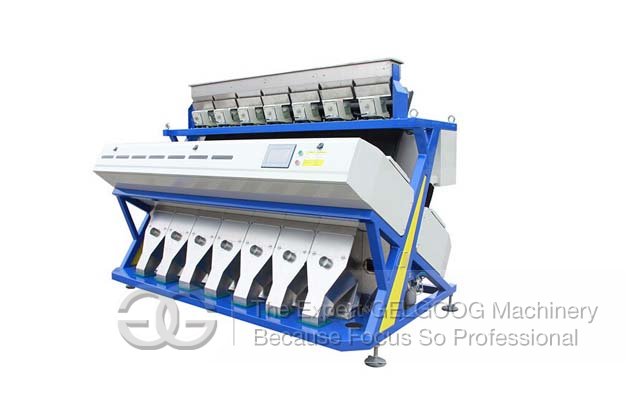

Industrial Color Sorting Machine
Industrial Color Sorting Machine
- MOQ:1 set
- Brand:GELGOOG MACHINERY
- Certification: CE
- Supply Ability: 100 sets per month
- PAY METHOD: WEST UNION L/C T/T CASH
- Warranty Time: 12 Months
- LOADING PORT: Qingdao port
- Country Of Origin: China
Application
Mainly used to sort or screen seeds,beans,or others in different color.
Main Feature
Super 10 inch screen for color and black-and-white,more flexible in touch and quick in operation.
Features
1.Using intelligent temperature and pressure control technology to ensure the machine runs in the best working condition.
2.The Sorter adopts high quality special industrial lens,its working parameters according to the various materials color requirements, and optimize the optical path design, to ensure the each size has a perfect image on the image sensor.
3.The high speed DSP Digital image processing technology provides the sorter with fast detection and high identification rate.
4.According to the spectra characteristics and identification of characteristics of rice.specifically design flexibility and robustness of both special grain detection algorithm start from the spectra analysis to meet slight color detection to improve robustness, to avoid interference with other factors of material surface.
5.The main control system adopts ARM9 high-end embedded processor.it effectively enhances processor speed and color selection precision.
6.The machine adopts intelligent closed-loop control, industrial data bus line can ensure the reliability of the communication and control system, strong anti-interference ability.
7.Super 10 inch screen for color and black-and-white,more flexible in touch and quick in operation. Many setting modes to meet the demand for the more color sorting algorithm.
8.The professional high speed solenoid valve , with more speed and high frequency, low power consumption and longer service life.
9.Double sides cameras and multiple modes can adapt to different demands. and high stability,high precision and low carryover.
Technical Data
|
Model |
GG-01 |
GG-02 |
GG-03 |
GG-04 |
|
Channels |
192 |
256 |
320 |
384 |
|
Capacity (t/h) |
3.5~7 |
3.5~7 |
4.5~8 |
5~10 |
|
Accuracy |
>99.98% |
>99.98% |
>99.98% |
>99.98% |
|
Waste |
<1:0.125 |
<1:0.125 |
<1:0.125 |
<1:0.125 |
|
Voltage(v) |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
Power(kw) |
2.5 |
2.5 |
2.8 |
3.1 |
|
Pressure(MPa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
|
Consumption(L/min) |
1200~3000 |
1200~3000 |
1600~3500 |
1800~3800 |
|
Weight(kg) |
900 |
1000 |
1200 |
1400 |
|
Dimension(L*W*H) |
1425*1518*1880 |
1725*1518*1880 |
2025*1518*1880 |
2325 *1518 *1880 |
FAQ
1.Q:can I get some samples?and what is the delivery time?
A:we are honored to sent you samples for quality check.for delivery time,10-20 days after confirm the sample order.
2.Q:do you have the products in stock?
A:Yes,we have some model products can supply to you.
3.Q:can I mix different modles in one container?
A:yes,different modles can be mixed in one container,but the quantity of each model should not be less than MOQ.
4.Q:how does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality control from the very beginning to the end of the production,every product will be fully assembled and carefully tested before it's packed for shipment.
