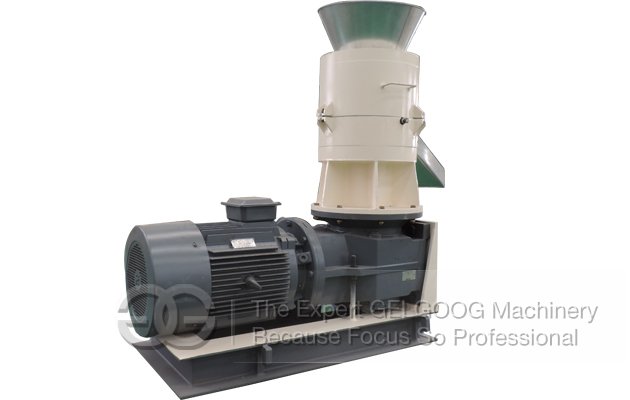

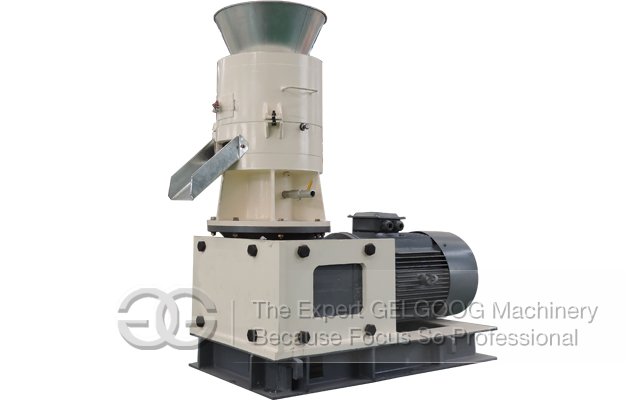

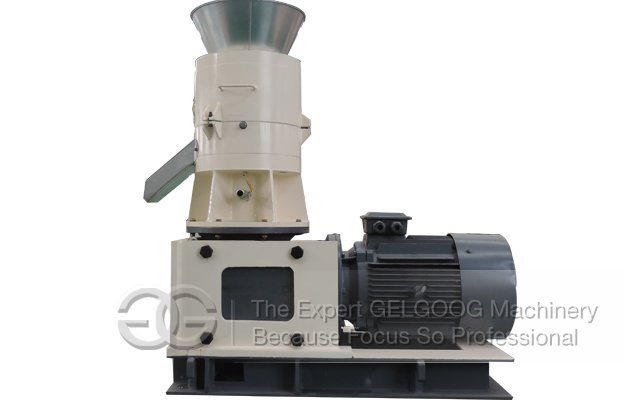

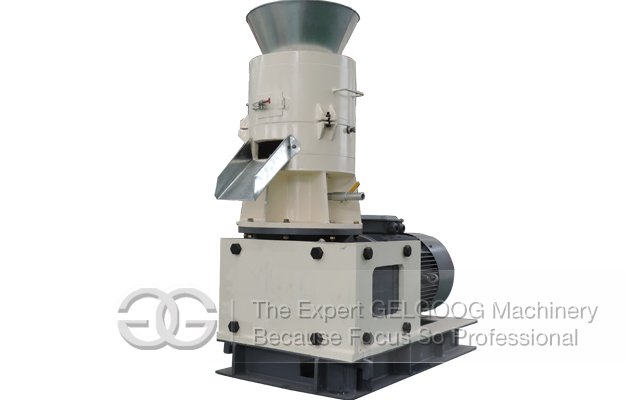

GGM4-1200 Professional Flat-Die Wood Pellet Mill

GGM4-1200 Professional Flat-Die Wood Pellet Mill

MOQ:1
Brand:GELGOOG MACHINERY
Certification: CE
Supply Ability: 100
PAY METHOD: WEST UNION L/C T/T CASH
Warranty Time: 12 Months
LOADING PORT: Qingdao port
Country Of Origin: China

Live Chat

Send Email

Application

Used for making fuel pellet,use in school,power plant,hospital and also can make feed pellet with high efficiency.

Main Feature

High efficiency,and multi-functional.

Site Operation Simulation Shows

To have a further understanding,the company business staff will take you to visit our factory to make on-site operation.You can operate and experience our excellent mechanical processing equipment personally.The factorys technical person will answer your questions with the patience.

Analysis of Customers Requirements

Interacting with customers,analysis of needs for some clients,we are actively interacting with customer as well as stepping into the processing plant,helping customers analyze the processing of raw materials,offering free samples and analysis report,processing feasibility study combined with the factory and regional environment.

Features

Professional Flat-Die Wood Pellet Mill is easy to operate,just put the raw material into the machine from feed port,the mould rotate friction,the roller rotate,by these two power,the raw material was pressed into mould,and be the cylindrical,these pellet will be sent out through the discharge port,in the discharge port,there is knifes,when the pellet go though,the knife will rotate and cut the pellet into small part,according to customer’s demand,the die clearance can be changed to achieved to get different size pellet.

Advantage
1.Tapered roller can induce the friction which is not necessary.

2.Out flat-die ;pellet machine set a observation door,you can observe the machine’s working ,and check the machine at any time,also it’s convenient to maintain.

3.There is a fan with machine’s gear,can ensure the machine radiating timely.

4.The flat-die pellet machine is easy to operate,and different kinds of type,suitable for home.

Technical Data

Product name	Model	Power (kw)	Capacity(t/h)
3-series Flat-die pellet mill	GGM3-350	37-4	0.3-0.5
	GGM3-450	55-4	0.5-0.8
	GGM3-550	90-6	0.7-1.2
	GGM3-800	130-160	0.7-1.2
	GGM4-1200	280-320	3-5

FAQ

1.Q:Have you exported to our country?

A:We have wide market all around the world,such as Africa,America,and Asia.All the reputation depends on the quality!Give us a chance ,we can feed back a satisfaction!

2.Q: We are not in China,how can you ship machines to us?

A: Do not worry about Shippment.We can help you to arrange shippment for you by Sea, by Air and by Express.If you have agent in China, welcome to your agent to come to us to pick up cargo if you like.

3.Q:Do you have CE Certification?

A:Yes,all our machine have the CE,BV,SGS,CCC,ISO9000.

4.Q:Is it easy to operate?can you give some instruction?

A:The machine is not difficult to be operated,also we have the video to show you how to operate.

5. Q:How long is the warranty?

A:Six months warranty and 24 hours online service.
