Hot Sale Charcoal Production line China

Hot Sale Charcoal Production line China

MOQ:1
Brand:GELGOOG MACHINERY
Certification: CE
Supply Ability: 100
PAY METHOD: WEST UNION L/C T/T CASH
Warranty Time: 12 Months
LOADING PORT: Qingdao port
Country Of Origin: China

Live Chat

Send Email

Application

It can produce the high efficiency charcoal.

Main Feature

It can process all kinds of straw and branch.

Site Operation Simulation Shows

To have a further understanding,the company business staff will take you to visit our factory to make on-site operation.You can operate and experience our excellent mechanical processing equipment personally.The factorys technical person will answer your questions with the patience.

Analysis of Customers Requirements

Interacting with customers,analysis of needs for some clients,we are actively interacting with customer as well as stepping into the processing plant,helping customers analyze the processing of raw materials,offering free samples and analysis report,processing feasibility study combined with the factory and regional environment.

Features

Automatic charcoal rural corn stover, corn cobs, branches, leaves, sawdust as raw material, after crushing pressure, increasing the density molding, is often said that "charcoal" "charcoal", due to be replaced traditional coal, so called "straw coal." It is a new fuel.This production line mainly is using the rural corn stover, corn cobs, branches, leaves, sawdust as raw material to produce charcoal.

It can process all kinds of straw and branch. It can produce the high efficiency charcoal.

Feature:

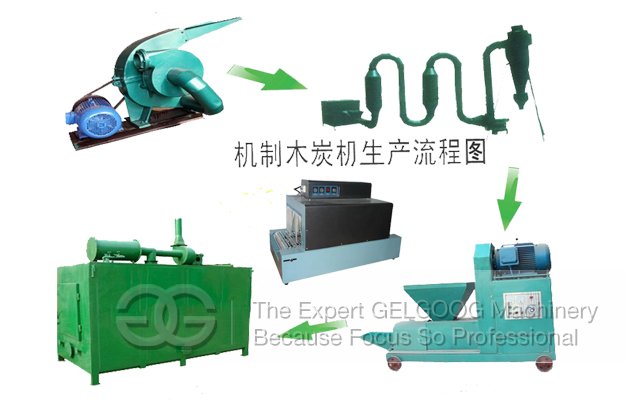

The process for producing wood sawdust charcoal briquette as follow:
a. Crush the raw material into small pieces (diameter is about 3-5mm)
b. Dry the material by machine or dried it in the sun, till the moisture is less than 12%
c. Put the material into feed let of briquette machine
d. Produce the briquette stick from biomass material without any additive
e. Carbonized the briquette stick

It can use many kinds of straw and branch as raw Material such as:

1.straw        2.sugarcane residue           3.coffee husk          4.cotton stalks
5.tobacco waste        6.mustard stalk        7.jute waste         8.bamboo dust
9.tea waste         10.wheat waste              11.palm husk          12.soybeans husk
14.rice husk       15.wood chips        16.agron waste ...

Technical Data

1.Crushing Machine

Model	GGF-2
Capacity	700-800 kg/h
Material Size	≤200 mm
Motor	11 kw
Size	12507002000 mm
Weight	400 kg

2.Vibrating Screen

Model	GG-2
Screen size	500*1500 mm
Grit size	3-4 mm
Motor	0.8 KW
Output:	5-6 T/H
Dimension	2640808848 mm

3.Sawdust Dryer Machine

Model	GGH-1	GGH-2
Productivity	400-650 kg/h	800-1000KG/h
Temperature of heating air	180℃-250℃	180℃-250℃
diameter of feed in(mm)	≦5	≦5
Motor power	4 kw	7.5kw

4.Sawdust Briquetting Machine

Model	LGZB-1	LGZB-2	LGZB-3
Capacity ( kg/h)	160-200	220-260	280-320
Motor	11 kw	15 kw	18.5 kw
Briquette’s diameter (mm)	40mm-60mm	60mm-70mm	60mm-80mm
Dimension (mm)	17006601300	18608001360	19009001450

5.Carbonizing Stove

Model	Power	Capacity	Furance temperature	Size
LGTH-20	1.5kw	1T	450℃	2300×1600×2000mm

FAQ

1.Q:can I get some samples?and what is the delivery time?

A:we are honored to sent you samples for quality check.for delivery time,10-20 days after confirm the sample order.

2.Q:do you have the products in stock?

A:Yes,we have some model products can supply to you.

3.Q:can I mix different modles in one container?

A:yes,different modles can be mixed in one container,but the quantity of each model should not be less than MOQ.

4.Q:how does your factory do regarding quality control?

A:Quality is priority,we always attach great importance to quality control from the very beginning to the end of the production,every product will be fully assembled and carefully tested before it's packed for shipment.
