Bamboo Toothpick Making Machine China
Author:tina
Date : 2017-09-25

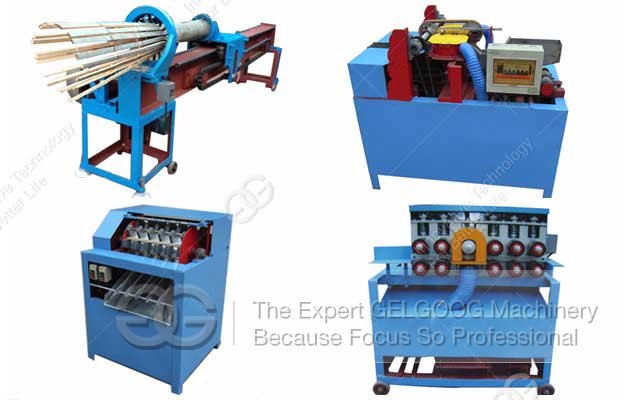

This bamboo toothpick making machine is composed of these 10 machines above, which are able to produce bamboo toothpick .And the total output is 600,000-800,000 pieces/8hrs, this production need about 4-5 person to operate. total volume is about 11cbm.
1.sawing machine (bamboo)
sawed 400mm*160T,the bamboo toothpick is used for feeding and cutting bamboo, better length is 1-1.2m
2. Bamboo split machine
dissection cutter head(9-18heads)total 10,put the finished bamboo into the suit cutter headaccording to the size and polish them into bamboo flakes, width from 20mm to 22mm,speed of feeding is 57m/min
3. fix thick and definitely wide flaker
put the polished bamboo flakes into this machine and make it to be square and straight every side, width from 18-20 mm, width of flaker is 3-4mm,speed of feeding is 87m/min
4. Bamboo filament shaping machine
molding the diameter of the bamboo filament as your request ,speed of feeding is 87m/min
5. Bamboo filament set-size machine
set uniform length of the stick ,as usual 5 or 6times of toothpick length
6.toothpick set size machine
cut the long stick into 65mm ,standard length of toothpick
7.Polishing machine
polish the raw stick after set-size
8.orderting machine
Order the stick from polishing machine ,easy for worker to pick them into sharpen machine
9.toothpick sharpen machine
Sharpen two tips or one sharpen one carve head
10 . Multi-sharpen machine
Sharpen the cutter and saw.
