China Bamboo Toothpick Maker Machine For Sale
Author:tina
Date : 2017-08-25

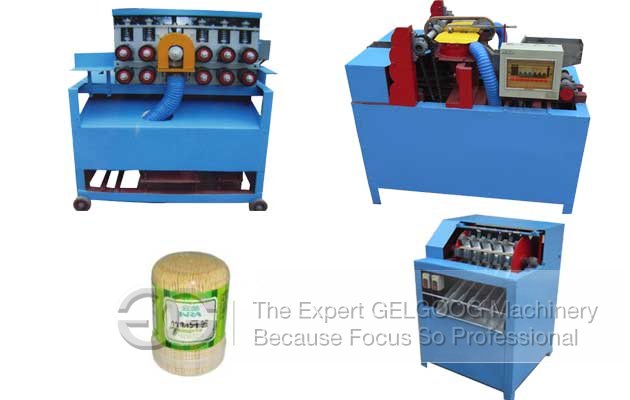

This bamboo toothpick maker machine is composed of the above 10 machines and can produce bamboo toothpicks.The total output is 600,000 to 800,000 pieces / 8 hours, and the production needs 4-5 people.The total volume is about 11cbm.
The bamboo toothpick production line have belows machine:
1.bamboo sawing machine
sawed 400mm*160T,the machine is used for feeding and cutting bamboo,and the better length is 1-1.2m
2. Bamboo split machine
dissection cutter head(9-18heads)total 10,put the finished bamboo into the suit cutter head according to the size and polish them into bamboo flakes, width from 20mm to 22mm.
3. fix thick and definitely wide flaker
put the polished bamboo flakes into this machine and make it to be square and straight every side,its width from 18-20 mm.
4. Bamboo filament shaping machine
molding the diameter of the bamboo filament as your request,speed of the feeding is 87m/min
5. Bamboo filament set-size machine
set uniform length of the stick,as usual 5 or 6 times of toothpick length
6.toothpick set size machine
cut the long stick into 65mm ,standard length of toothpick
7.Polishing machine
polish the raw stick after set-size
8.orderting machine
Order the stick from polishing machine,and easy for worker to pick them into sharpen machine
9.toothpick sharpen machine
Sharpen two tips or one sharpen one carve head
10.Multi-sharpen machine
Sharpen the machine
